wear pipe

chromium carbide overlay alloyed anti wear tube

Hardness:HRC58-65
Thickness:3-25 mm
Material:Q235/Q345+Chromium carbide
Minimum ID:80mm
Product description: chromium carbide overlay alloyed anti wear tube
INQUIRY

chromium carbide overlay alloyed anti wear tube

Wear Pipe

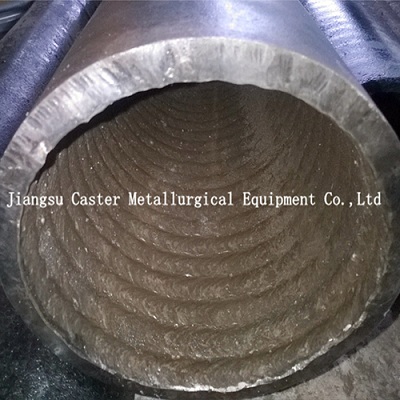

Chromium carbide overlay alloyed anti wear tube
We introduced automatic welding equipments for pipes (internal and external) meeting the increasing demand for small diameter wear pipes.

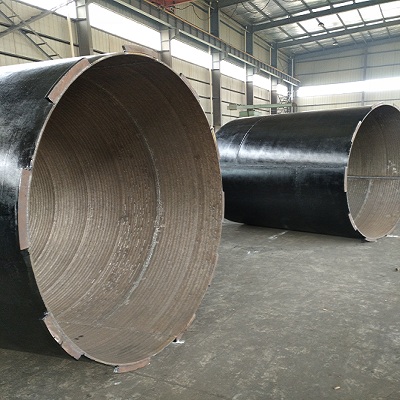

Wear Pipes
1.Steel pipe with regular base material + overlay, pipes are welded with our automatic welding machine resulting in good shaped and flat surface pipes.
2.Bending the wear plate into round pipe
3.Assembling the wear plate into square pipe
automatic welding, metallurgical bonding, available to weld the minimum pipe diameter of 80mm and maximum pipe length of 3000mm.
Wear Elbow
1.Weld directly on the elbow wall
2.wear plate used to make joint form
Square to Round Transition
Wear plate used to make tube with round top and square bottom.

Product Name	chromium carbide overlay alloyed anti wear tube
Brand	caster
Base Plate	Q235/Q345
Hardfacing layer	High chromium high carbide overlay (Hard layer face out or face in)
Chemical Composition	C(%): 3.0-5.0 Cr(%): 25-40
Hardness	HRC58-65
Surface Treatment	Hardfacing, clading, coated
Technique	Hardfacing, open arc welding, submerged arc welding
Minimum Inner Diameter	80mm
Wear Resistance	High wear resistance
Thickness	3+3,4+4,5+5,6+4,6+5,6+6,8+4, etc. Customized
Place of Origin	China
Application	Mining, Steel, Cement, Power, Port, etc.
