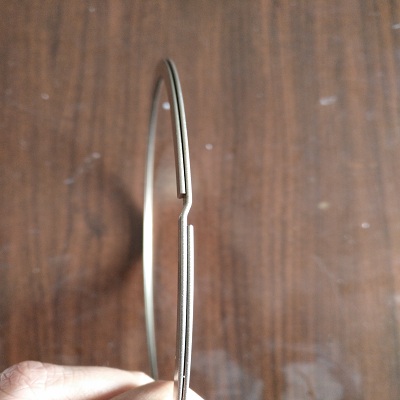

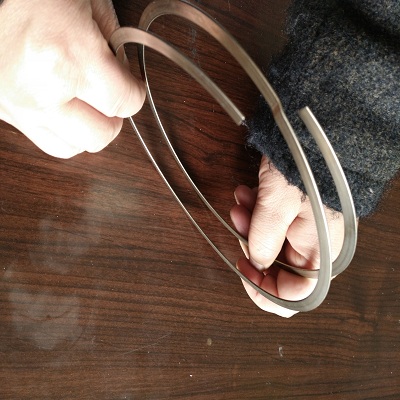

Spiral retaining ring is a metallic labyrinth seal consisting of multiple rings in a groove.

They are produced in-house.  If you want FK3 FK6 FK5 or VH & VS, WH & WS, EH & ES, WHT & WST, WHM & WSM, DNH & DNS spiral retaining rings, we are the alternative supplier you are looking for.

Our laminar rings have following configurations:

Note :

1. FK6 lSD, Inside Clamping Double Rings, 1 set = 2 rings ( for shaft )
2. FK6 lSKD, Inside Clamping Double Rings Combination, 1 set = 3 rings(2 for shaft, 1 for bore)
3. FK6 ASD, Outside Clamping Double Rings, 1 set = 2 rings( for bore)
4. FK6 ASKD, Outside Clamping Double Rings Combination, 1 set = 3 rings(1 for shaft, 2 for bore)
5. FK3 lS, Inside Clamping, 1 set = 3 rings(for shaft)
6. FK3 AS, Outside Clamping, 1 set = 3 rings(for bore)
7. FK3 lSK, Inside Clamping Combination, 1 set = 5 rings(3 for shaft, 2 for bore)
8. FK3 ASK, Outside Clamping Combination, 1 set = 5 rings(2 for shaft, 3 for bore)
9. FK5 Single and Double Wound Sealing Rings.
10. We can also produce VH & VS, WH & WS, EH & ES, WHT & WST, WHM & WSM, DNH & DNS series.

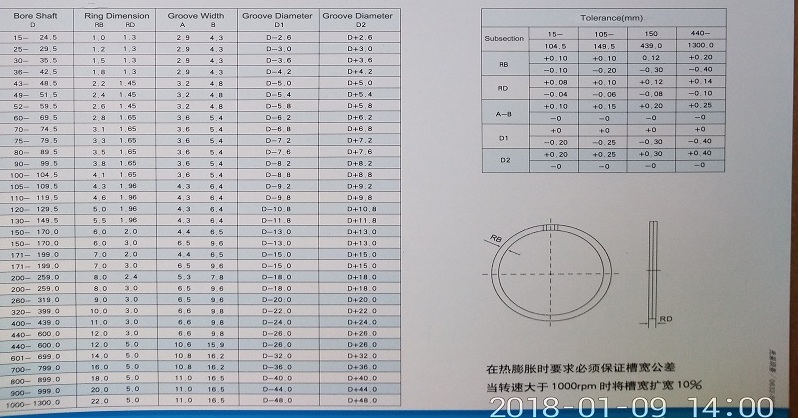

Sizes：

laminar ring comes with various sizes and using different materials, If you want a quote, please tell us your needed material and type and size. E.g. FK5 ISD 170x6.0x2.0
