wear plate

  • Hardfacing plate
  • Hardfacing plate
  • Hardfacing plate
Hardfacing plateHardfacing plateHardfacing plate

Hardfacing plate

  • Brand Name ：Caster(KST)
  • Material： Q235/Q345+Chromium carbide overlay
  • Hardness：HRC58-62
  • Flatness tolerance：±3mm/m
  • Product description: Caster hardfacing plate is a bimetal plate made from a base plate overlaid with chromium carbide through open arc welding. We have been producing chromium carbide overlay wear plate in China since 200
  • INQUIRY

Hardfacing plate

Caster hardfacing plate is a bimetal plate made from a base plate overlaid with chromium carbide through open arc welding.

The overlaid layer of chromium carbide is the functional hardface for wear resistance applications. For some special use, we can overlay both sides for you.

Features & Benefits：
  1. It's cheaper when you take its long lifespan into consideration.
  2. Best solution for coal, cement, steel, ore e.t.c (can withstand up to 600°C).
  3. Can tolerate moderate impact.
  4. Low maintenance cost and easy installation.
  5. The hairline-like cracks on the surface is nature occurrence of open arc welding. The hairlines will not affect the wear resistance property and long lifespan.


Application Specifications：

  1. Cutting – Plasma burning or water jet.
  2. Welding – Can be welded together.
  3. Bending – Using a press brake, forming should be perpendicular to the weld pass direction. Plate rolling should be performed in the directions of the overlay beads.

Technical Specifications & Chemical Composition:

Product Name
 hardfacing plate
HS Code
 8474900000
Brand
 Caster (Chinese pinyin initial: KST)
Base Plate
 Q235B/Q345
Hardfacing layer
 open arc weld
Chemical Composition
 C(%): 3.0-5.0, Cr(%): 23-27, Mn(%): 2.0-3.0, B(%): 0.7-1.0
Microstructure
 The carbide (Cr7C3) volume fraction on the microstructure is above 50%.
Hardness
 HRC58-62
Surface Treatment
 painted black
Technique
 Hardfacing, open arc welding, submerged arc welding.
Wear Resistance
 High wear resistance, 30 times higher than low carbon steel and 12 times than heat treated steel.
Impact Resistance
 Medium.
Flatness tolerance
 ±3mm/m.
Thickness tolerance
 Uniform overlay thickness, with tolerance within 0-0.5mm.
Main Thicknesses
 3+3,4+4, 5+5
6+4,6+5,6+6,6+8
8+4,8+5,8+6,8+7,8+8
10+4,10+5,10+6,10+7,10+8,10+9,10+10,10+20
12+4,12+5,12+6,12+7,12+8,12+10,12+11,12+12
14+6,14+8,14+10,16+6,16+8,16+10

18+6,18+8,18+10,20+5,20+6,20+8,20+10,20+20,30+10,40+10

Customized.

Plate Size
 single plate maximal size:1400*3400mm; we can weld 2 plate together to make bigger plate
Place of Origin
 China.
Application
 Mining, Steel, Cement, Power, Port, etc.

Performance comparison：

Item Hardness(HRC) Max service temperature Abrasion Impact Processibility Service life
Steel plate 35-55 Low ★ ★ ★★ ★
Hardox 37-57 600 ★★ ★★ ★★★ ★★
NM 33-42 600 ★★ ★★ ★★★ ★★
Caster hardfacing plate 58-62 600 ★★★ ★★★ ★★ ★★★★

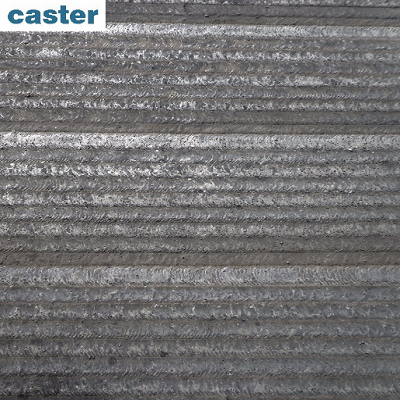

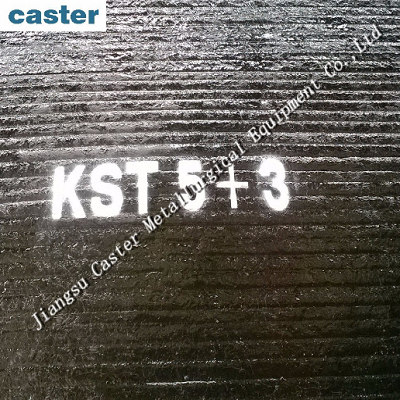

Product display of our hardfacing plate

Direct Factory Produce Bimetallic Composite Chrome Carbide Overlay Plate



Pictures of manufacturing process

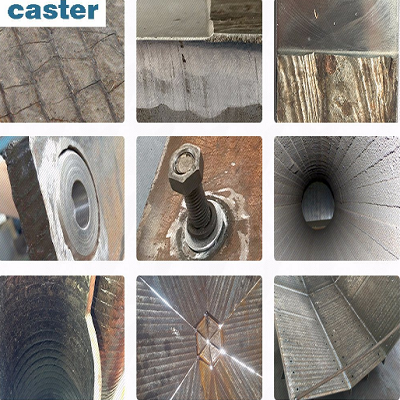

Field application
Direct Factory Produce Bimetallic Composite Chrome Carbide Overlay Plate

Quality inspection
Direct Factory Produce Bimetallic Composite Chrome Carbide Overlay Plate

Packaging & Shipping

Direct Factory Produce Bimetallic Composite Chrome Carbide Overlay Plate

Packaging: Steel pallet, Non fumigation pallets,Customized

Packaging Size: 1.4*3.4, 1.4*.3.0, customized.
Delivery Detail: Generally it is 5-10 days, it is according to quantity.



No previous NEXT：laminar ring

RELATED PRODUCTS

Chromium Carbide Overlay plate

Chromium Carbide Ove

Caster chromium carbide overlay plate is a wear plate compri...

Chromium carbide wear plate

Chromium carbide wea

Caster Chromium carbide wear plate is made from a base plate...

Wear Resistant Steel

Wear Resistant Steel

Caster wear resistant steel is a bendable and weldable abras...

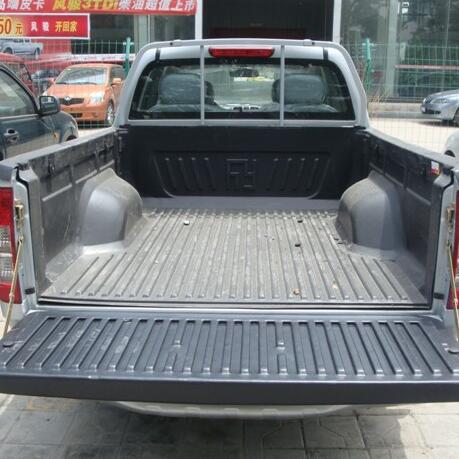

Pickup truck bed liner
