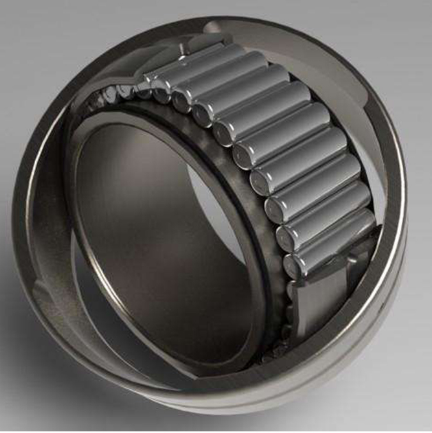

Cylindrical Roller Bearings

Separated: Separated
HS Code: 84824000
Bore Size: 35 - 80 mm
Structure: Cylindrical
Product description: Cylindrical Roller Bearings use cylinders as the rolling elements instead of balls in ball bearings. So, the contact area with the outer ring is larger and loads are distributed more evenly.
INQUIRY

Cylindrical Roller Bearings use cylinders as the rolling elements instead of balls in ball bearings. So, the contact area with the outer ring is larger and loads are distributed more evenly over a broader surface.

1,Parameter

2,Advantages

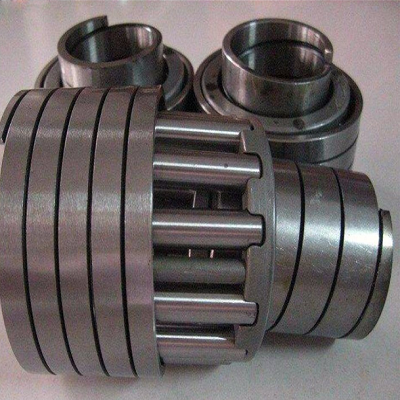

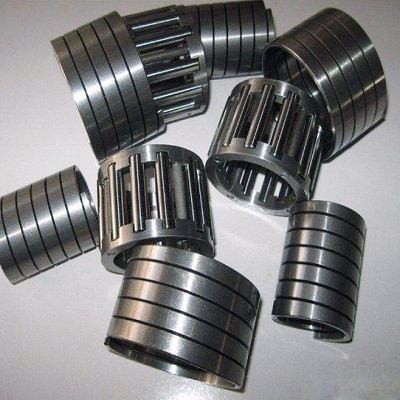

1>,spiral ring roller bearing
2>,high axial and radial load
3>,supply OEM
4>,sample available

5>,ISO9001:2008

Specifications		Shape size (mm)				Rated load (KN)		Limit speed (r/min)	Weight (Kg)	Remarks
New standard	Old standard	d	D	B	C	Cr	Cor		Weight (Kg)	Remarks
AS8106w		30	62	36	50	71	84		0.40	Spring Roller Bearings All can be replaced two End cover, more The replacement can be generated: AS0000K AS0000NL AS0000IC AS0000WB Equal deformed products, So, the order book A series of products please Fine check product Assembly drawing with parts Or product part drawing You can also consult Ben Company technology department.
AS8107WN		35	62	36	50	97	145		0.66
AS8107W		35	65	38	64	104	165		0.98
AS8108	NB4608Y	40	71	32	32	70	91		1.00
AS8208	115908X1	40	71	30	40	70	91		0.84
AS8208E		40	71	28	40	70	91		0.88
AS9108	115908X2	40	78	45	57	100	136		1.04
AS9208		40	82	62	80	180	216		1.51
AS8108X		40	71	47	57	100	136		*1.31
AS8109	115909X	45	80	55	65	138	213		1.51
AS8109W		45	80	63	73	138	213		1.65
AS8109WE		45	80	81	90	211	252		*2.14
AS8209		45	80	70	70	138	213		*1.52
AS7210W		50	72	63	73	140	225		1.25
AS8210	105910	50	95	70	95	230	272		2.31
AS9110	115910	50	95	63	90	138	213		1.61
AS8210WN		50	85	70	80	220	267		2.02
AS8111W		55	90	63	73	138	213		2.07
AS8211W		55	95	63	73	138	213		2.15
AS8111		55	90	81	100	206	336		*1.87
AS8211WN		55	90	72	90	220	310		2.37
AS8112W		60	95	63	73	206	336		2.18
AS8212W		60	105	63	73	236	366		2.77
AS8312		60	90	55	65	206	336		*1.17
AS8212IC		60	100	63	90	236	366		2.85
AS8112WE		60	89	63	73	138	213		1.63
AS8112WB		60	95	63	73	138	213		2.48
AS8113W		65	110	63	73	206	336		3.18
AS8113		65	110	81	120	170	365		4.31
AS8214		70	120	80	80	360	474		3.66
AS8215M		75	105	54	60	235	425		*1.42
AS8115		75	115	80	90	235	425		3.05
AS8116W		80	120	63	73	773	808		3.13
AS8116NL		80	125	65	70				3.37
AS8119NL		95	130	65	70				3.36
S8628		140	180	100					7.87
DS5218W		90	153	112	140				10.32
DS5220W		100	165	64	84				8.05
